Viljuškar 3 tone sa žlicom, hidraulična kanta

Dom / Svi prilozi / Viljuškar 3 tone sa žlicom, hidraulična kanta

Viljuškar 3 tone sa žlicom, hidraulična kanta

Specifikacije


3 ton forklift with bucket , diesel forklift
automatic transmission,
power steering,with 3 meters
duple mast

Video


Tip

Outer busket dimension(mm)

Max. Fork Size(mm)

Udaljenost vilice (mm)

Unit Weight (kg)

Nosivost (kg)

Volume(m3)

Busket Plate Thickness (mm)

DBHS-12

1100*570*1200

180*65

700

306.0

1000

0.50

5

DBHS-14

1100*570*1400

180*65

700

348.0

1000

0.55

6

DBHS-16

1100*570*1600

180*65

700

366.0

1000

0.65

6

DBHS-18

1100*570*1800

180*65

700

384.0

1000

0.75

6

DBHS-20

1100*570*2000

180*65

700

402.0

1000

0.80

6

Brzi detalji


Stanje: Novo
Mjesto porijekla: Fujian, Kina (kopno)
Robna marka: HUAMAI
Broj modela: HUAMAI30
Tip: Paletni viličar
Power Souce: Dizel motor
Nazivna nosivost: 3000kg
Maks. Visina podizanja: 3000mm
Min. Visina podizanja: 120 mm
Dužina vilica: 1070mm
Širina vilice: 125 mm
Overall Dimensions: 3740x1225x2090mm
Certifikacija: ISO9001
color: white
diesel forklift: 3 ton forklift with bucket , diese


Uvod]

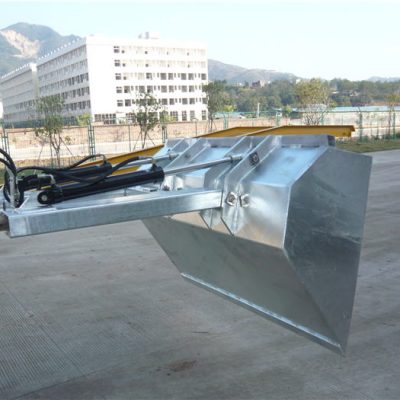

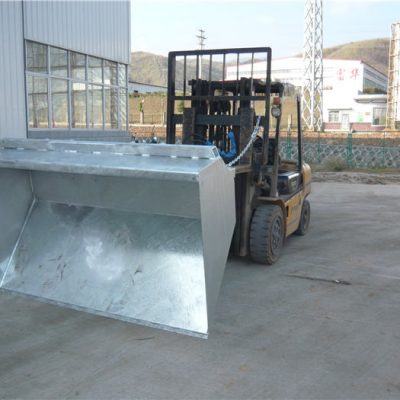

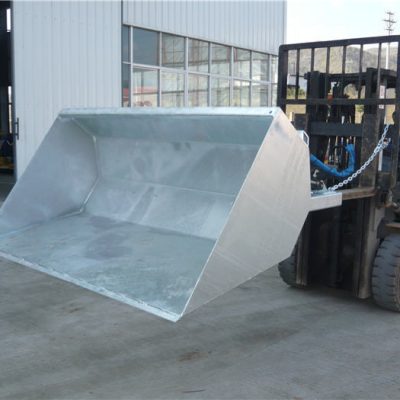

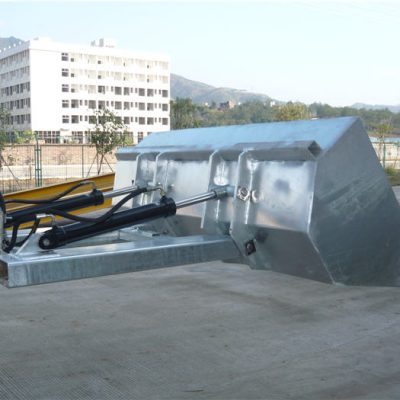

CNB hydraulic buckets are designed to handling sands, stone, pebble, dirt, waste and so on. It can be easily installed on your forklift then help you operate the cargo conveniently and rapidly.

Značajke:

* Realizing both forward and backward tipping through hydraulic cylinder.

* Dumped via a simple mechanical lever.

* A blade made of wear-resistant material is welded in the front of the bucket.

* Surface treatment:painted or galvanized finish.

[Specification]

VrsteOuter bucket dimension   (mm)Max. Fork Size   (mm)Udaljenost vilice (mm)Unit Weight (kg)Nosivost (kg)Volume       (m³)Bucket Plate Thickness(mm)
DBHS-121100x570x1200180x65700306.010000.505
DBHS-141100x570x1400180x65700348.010000.556
DBHS-161100x570x1600180x65700366.010000.656
DBHS-181100x570x1800180x65700384.010000.756
DBHS-201100x570x2000180x65700402.010000.806
